3D Scanner

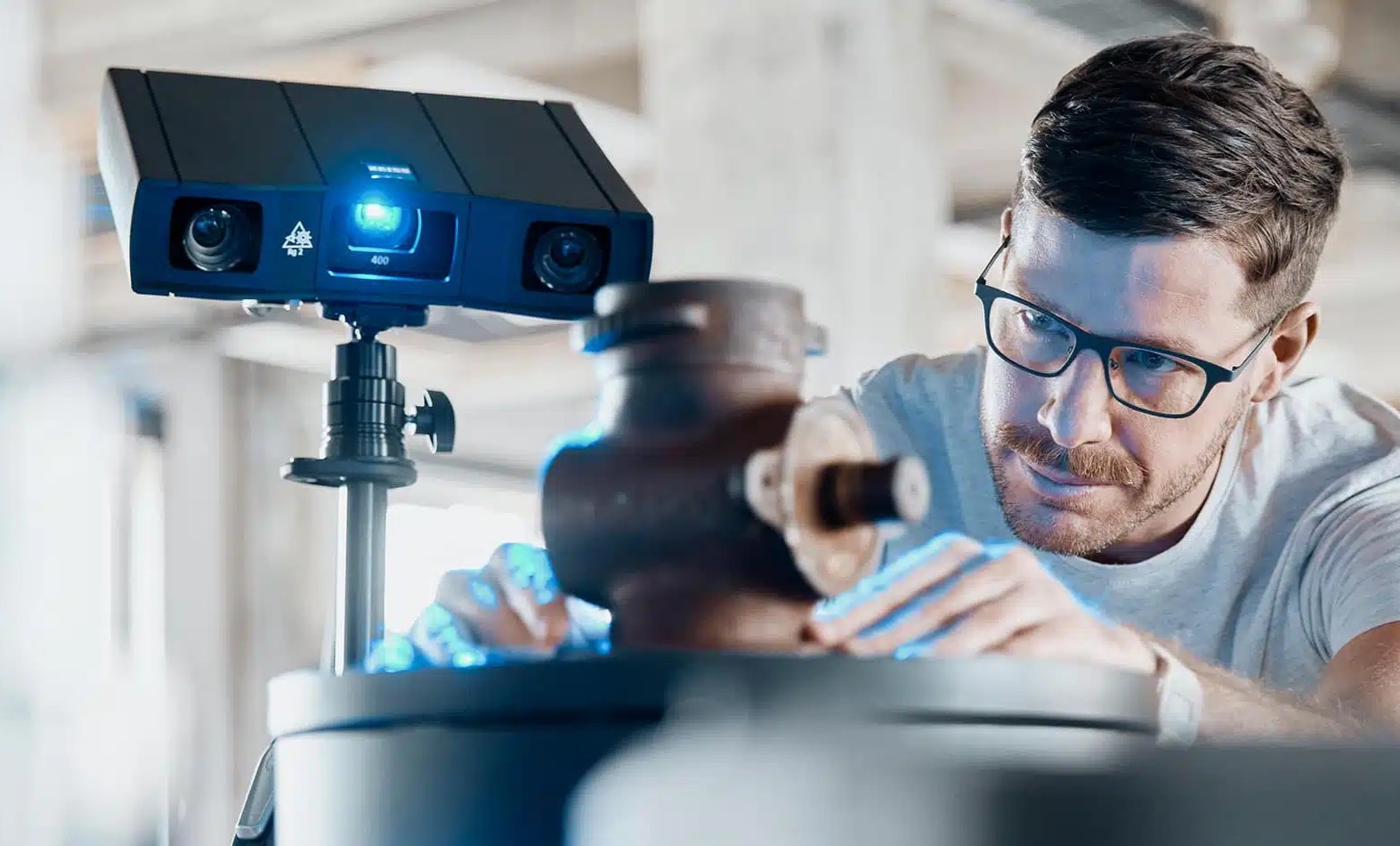

The ZEISS GOM Scan 1 MV 100 is a compact and mobile 3D scanner designed for precise digitization of small to medium-sized components. Its lightweight design allows for easy handling, even in confined spaces.

Key Features:

  • Technology: The scanner utilizes structured light projection combined with GOM’s Blue Light Technology. These technologies ensure high-precision 3D meshes by filtering out ambient light and enabling fast measurement times.

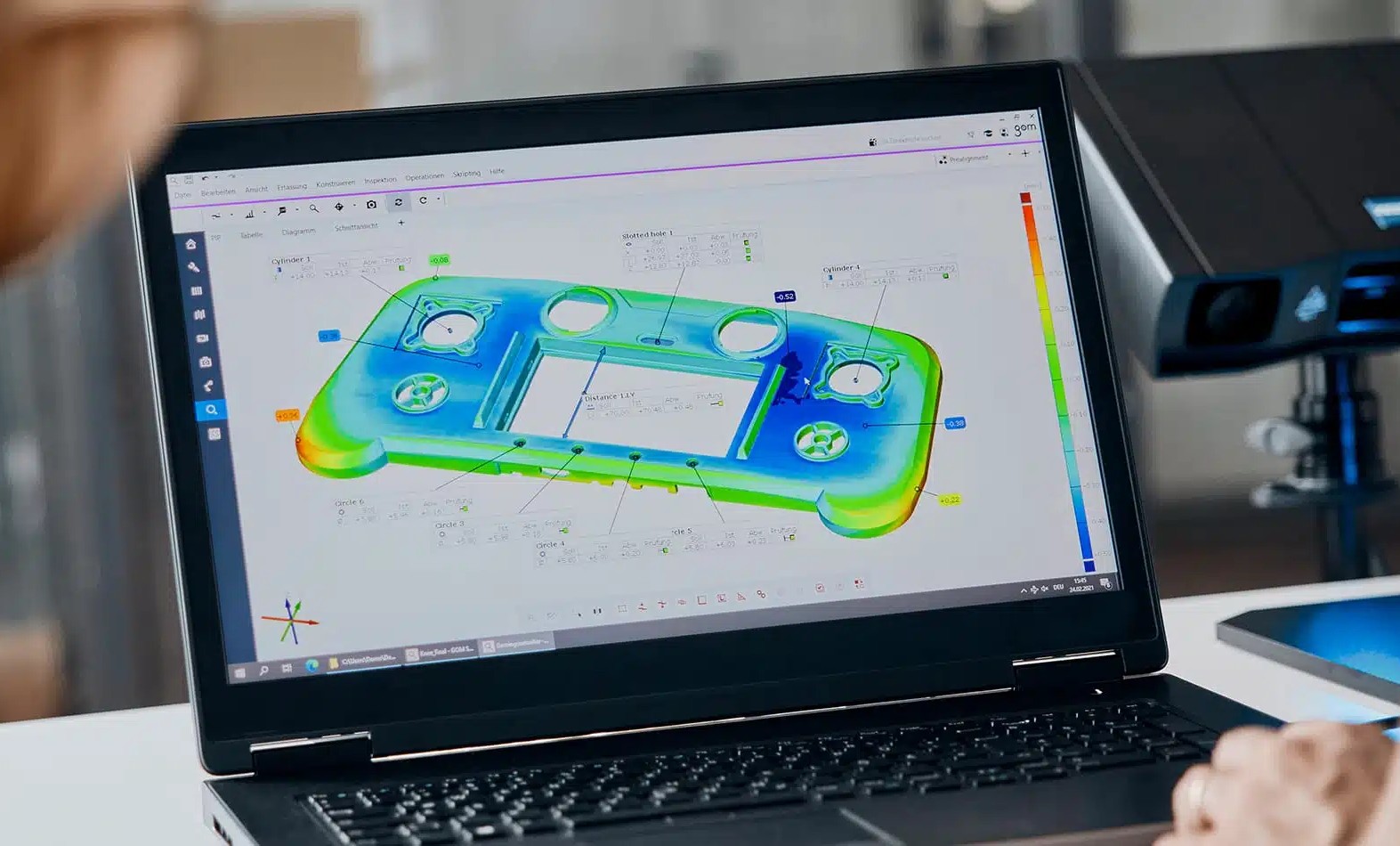

  • Software Integration: The GOM Scan 1 comes with GOM Inspect software, which provides powerful mesh editing functions, supporting applications such as 3D printing, reverse engineering, and part inspection.
  • Self monitoring system: Due to the stereo camera principle, the sensor recognizes changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the software of the sensor continuously monitors the sensor status.
  • Precision: With 6 million points per scan and a resolution of up to 0.037 mm, the GOM Scan 1 produces highly detailed scan results.
  • Weight: Weighing just 2.5 kg, the device is highly portable and can be used in various locations with ease.

The ZEISS GOM Scan 1 combines ease of use, mobility, and high-precision metrology, making it an essential tool for various 3D data capture applications.
